Safety infrastructure supporting concert LED video walls requires meticulous engineering, redundant systems, and strict procedural compliance. Understanding load calculations, rigging hardware specifications, and regulatory requirements ensures secure installations protecting audiences, performers, and crew while enabling creative freedom in display configurations.
Structural Load Calculations
LED panel weight varies between 8 and 14 kilograms per square meter depending on manufacturer and specifications. A 150-square-meter display weighs approximately 1,800 kilograms excluding frames and rigging hardware. Support structures add 30-50% additional weight, bringing total suspended loads to 2,500-3,000 kilograms. These calculations must include dynamic loading factors accounting for movement, wind, and seismic considerations.
Safety factors multiply calculated loads ensuring structural integrity under extreme conditions. Entertainment rigging typically applies 5:1 safety factors for overhead suspension, meaning hardware must support five times expected loads without failure. Critical components like shackles and motors often require 10:1 factors. A 3,000-kilogram display therefore needs rigging rated for minimum 15,000 kilograms static load.
Point load distribution prevents localized stress concentrations exceeding structural capacities. Venue ceiling grids typically support 500-1,000 kilograms per attachment point. Distributing 3,000 kilograms across six points maintains safe loading while providing redundancy. Load cells at each point monitor actual weights, alerting riggers to imbalanced conditions requiring adjustment.
Dynamic amplification factors account for acceleration forces during movement. Automated systems repositioning displays during performances generate loads exceeding static weights by 25-50%. Emergency stops can produce 3G accelerations, tripling effective weights momentarily. Structural calculations must accommodate these peak loads preventing failure during critical moments.
Rigging Hardware Specifications
Shackles connecting displays to suspension systems must meet specific load ratings with documented certifications. Grade 8 or higher alloy steel shackles provide necessary strength while minimizing weight. A 2-ton working load limit shackle weighs approximately 0.5 kilograms while safely supporting 10,000 kilograms before failure. Color coding and serial numbers enable tracking inspection histories and load ratings.
Motor hoists lifting displays utilize variable speed controls enabling precise positioning. Industry-standard 1-ton motors lift at 4-8 meters per minute with positional accuracy within 5 millimeters. Dual-brake systems provide redundant stopping capability, with each brake independently capable of holding rated loads. Encoder feedback enables synchronized movement across multiple motors maintaining level orientation.
Steel wire rope or chain connects motors to display frames. 10mm aircraft cable rated for 8,500 kilograms breaking strength provides adequate safety margins for 1-ton motors. Chain offers easier inspection for wear but adds weight and noise. Wire rope requires careful monitoring for broken strands, kinks, or corrosion potentially compromising strength.

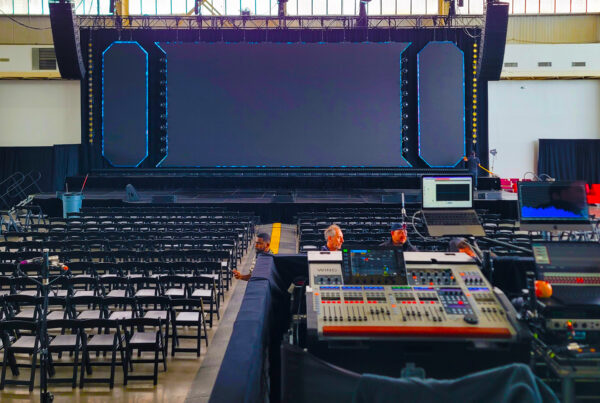

Truss structures distribute loads while providing mounting positions for displays. Heavy-duty box truss rated for 750 kilograms per meter uniform loading supports LED walls and associated equipment. Connections between truss sections must maintain structural continuity through proper pin alignment and safety clips. Ground-supported systems utilize tower configurations transferring loads directly to flooring.
Wind Load Engineering
Outdoor installations face substantial wind forces potentially destabilizing displays. A 200-square-meter wall experiences approximately 60,000 newtons force in 120 km/h winds. This translates to 6,000 kilograms horizontal load requiring appropriate ballast or guy-wire systems. Wind speed monitoring triggers predetermined responses ranging from operational limits to complete dismantling.
Ballast calculations ensure ground-supported structures remain stable under maximum expected winds. Concrete blocks weighing 1,000-2,000 kilograms each provide necessary counterweight. Distribution across multiple points prevents floor damage while maintaining stability. Water barrels offer adjustable ballast but require freeze protection in cold climates.
Guy-wire systems provide lateral stability for tall structures. Tensioned cables at 45-degree angles transfer horizontal loads to ground anchors. Each cable requires pretension of 10-15% breaking strength ensuring immediate load response. Turnbuckles enable precise tension adjustment while load cells monitor actual forces.
Mesh banners or perforated panels reduce wind loading by 30-40% compared to solid surfaces. These solutions maintain visual impact while improving safety margins. However, image quality suffers slightly due to reduced fill factor. Productions must balance aesthetic preferences against safety requirements when selecting display surfaces.
Inspection and Certification Protocols
Daily visual inspections identify potential issues before they compromise safety. Riggers examine shackles, slings, and connection points for damage, wear, or improper assembly. Motor hoists undergo function tests confirming smooth operation and brake engagement. Documentation includes photographs and written reports maintaining audit trails for insurance and regulatory compliance.
Annual inspections by certified professionals verify structural integrity through comprehensive testing. Magnetic particle or dye penetrant testing reveals microscopic cracks in critical components. Load testing confirms hardware meets rated capacities. Certificates documenting inspection results must accompany equipment throughout tours.
Torque specifications ensure bolted connections maintain proper clamping forces. Under-tightened bolts may loosen during vibration while over-tightening can cause material failure. Calibrated torque wrenches applying manufacturer-specified values prevent both conditions. Mark-checking confirms bolts haven’t rotated after initial tightening.
Chain hoist inspections follow manufacturer guidelines typically requiring service every 200-400 operating hours. This includes brake adjustment, gear lubrication, and electrical testing. Service records documenting maintenance history affect insurance coverage and regulatory compliance. Retired equipment must be destroyed preventing inadvertent reuse.
Emergency Response Procedures
Evacuation plans specific to rigging failures require regular drilling ensuring crew preparedness. Clear zones beneath suspended loads remain unoccupied except during necessary work. Emergency stop buttons at multiple locations enable rapid motor shutdown. Communication protocols ensure coordinated responses preventing panic.
Rescue procedures for workers trapped at height demand specialized training and equipment. Rescue kits including descenders, harnesses, and ropes must remain accessible near work areas. Response teams require high-angle rescue certification renewable every two years. Practice scenarios maintain skill proficiency under stress.
Weather monitoring systems provide advance warning of conditions exceeding operational limits. Anemometers trigger automatic alerts at predetermined wind speeds. Lightning detection systems indicate approaching storms requiring suspension of outdoor work. Temperature monitoring prevents material brittleness in extreme cold or thermal expansion in heat.
Incident reporting procedures document near-misses enabling process improvements. Anonymous reporting encourages honest communication without fear of retribution. Root cause analysis identifies systemic issues requiring correction. Lessons learned distribute throughout touring communities preventing repeated mistakes.
Regulatory Compliance Standards
European Standard EN 13814 governs fairground and amusement park machinery including temporary structures. This standard requires documented design reviews, manufacturing quality control, and operational inspections. Compliance demonstrates due diligence satisfying insurance requirements and legal obligations.
American National Standards Institute ANSI E1.21 addresses temporary ground-supported overhead structures. Load tables, safety factors, and inspection requirements provide baseline safety standards. Local jurisdictions may impose additional requirements requiring advance coordination with authorities.
Occupational safety regulations protect workers during installation and operation. Fall protection requires harnesses and lanyards for work above 1.8-2 meters depending on jurisdiction. Overhead work necessitates hard hats and exclusion zones. Electrical safety includes lockout/tagout procedures preventing energization during maintenance.
Transportation regulations govern equipment movement between venues. Proper load securing prevents shifting during transit. Weight distribution maintains legal axle loads. Oversized load permits may be required for large frame sections. Driver hours-of-service rules affect tour routing and scheduling.
Training and Competency Requirements
Rigger certification programs ensure personnel possess necessary knowledge and skills. ETCP (Entertainment Technician Certification Program) provides internationally recognized credentials. Arena riggers require advanced training covering complex load calculations and specialized hardware. Continuing education maintains currency with evolving standards and technologies.
Equipment-specific training from manufacturers covers proper assembly, operation, and maintenance procedures. This training typically requires 16-40 hours depending on system complexity. Certificates of completion may be required for warranty validity and insurance coverage.
Safety training encompasses general hazard awareness and specific procedural knowledge. Topics include personal protective equipment, fall protection, electrical safety, and emergency response. Annual refresher training reinforces critical concepts while introducing updated procedures.
Documentation systems track individual training records, equipment certifications, and inspection histories. Digital platforms enable real-time access from any location. QR codes on equipment link to relevant documentation. This organization proves essential during regulatory inspections or incident investigations.
Professional rigging of concert LED video walls demands engineering precision, quality hardware, and trained personnel. Investment in proper equipment and procedures prevents catastrophic failures potentially causing injuries and destroying careers. As displays grow larger and more complex, rigging infrastructure must evolve correspondingly maintaining safety as the absolute priority above all creative or financial considerations.
